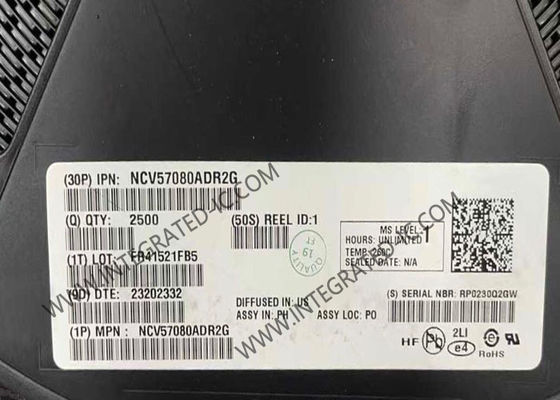

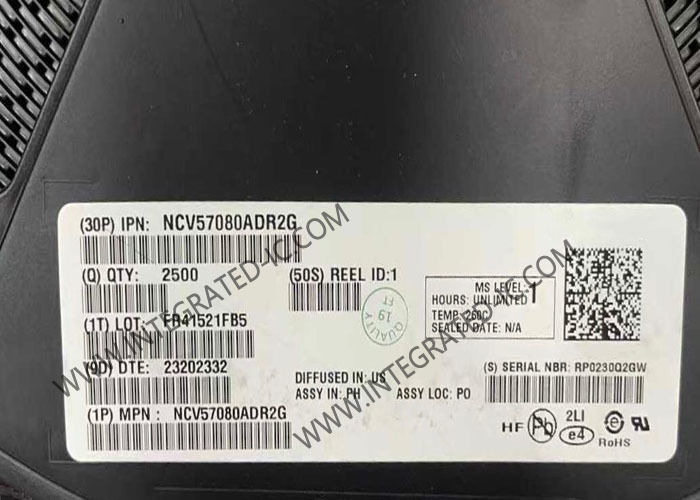

NCV57080ADR2G Integrated Circuit Chip Isolated High Current IGBT/MOSFET Gate Driver

NCV57080ADR2G Integrated Circuit Chip Isolated High Current IGBT/MOSFET Gate Driver​

Product Description Of NCV57080ADR2G

NCV57080ADR2G is high−current single channel IGBT/MOSFET gate drivers with 3.75 kVrms internal galvanic isolation, designed for high system efficiency and reliability in high power applications. The driver accommodate wide range of input bias voltage and signal levels from 3.3 V to 20 V and they are available in narrow−body SOIC−8 package.

Specification Of NCV57080ADR2G

Features Of NCV57080ADR2G

High Peak Output Current (+6.5 A/−6.5 A)
Low Clamp Voltage Drop Eliminates the Need of Negative Power Supply to Prevent Spurious Gate Turn−on (Version A)
Short Propagation Delays with Accurate Matching
IGBT/MOSFET Gate Clamping during Short Circuit
IGBT/MOSFET Gate Active Pull Down
Tight UVLO Thresholds for Bias Flexibility
Wide Bias Voltage Range including Negative VEE2 (Version B)
3.3 V, 5 V, and 15 V Logic Input
3.75 kVRMS VISO (I−O) (to meet UL1577 Requirements)
High Transient Immunity
High Electromagnetic Immunity

Applications Of NCV57080ADR2G

Motor Control
Uninterruptible Power Supplies (UPS)
Automotive Applications
Industrial Power Supplies
Solar Inverters
HVAC
