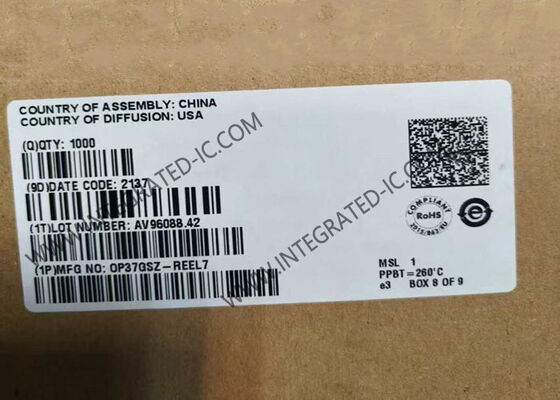

OP37GSZ Integrated Circuit Chip Low Noise Precision High Speed Operational Amplifier
Product Description
The OP37GSZ provides the same high performance as the OP27, but with optimization for circuits with gains greater than five. This design enhancement delivers a slew rate of 17V/µsec and gain-bandwidth product of 63MHz.
Combining the low offset and drift characteristics of the OP07 with higher speed and lower noise, the OP37GSZ features offsets down to 25µV and drift of 0.6µV/°C maximum, making it ideal for precision instrumentation applications. Its exceptionally low noise (3.5nV/√Hz at 10Hz), low 1/f noise corner frequency of 2.7Hz, and high gain of 1.8 million enable accurate high-gain amplification of low-level signals.
Specifications
| Parameter |
Value |
| Amplifier Type |
Standard (General Purpose) |
| Number of Circuits |
1 |
| Slew Rate |
17V/µs |
| Gain Bandwidth Product |
63 MHz |
| Current - Input Bias |
15 nA |
| Voltage - Input Offset |
30 µV |
| Voltage - Supply Span (Min) |
8 V |
| Voltage - Supply Span (Max) |
36 V |
| Operating Temperature |
-40°C ~ 85°C |
Key Features
- Low Noise: 80 nV p-p (0.1 Hz to 10 Hz)
- 3 nV/√Hz @ 1 kHz
- Low Drift: 0.2 µV/°C
- High Speed: 17 V/µs Slew Rate
- 63 MHz Gain Bandwidth
- Low Input Offset Voltage: 10 µV
- Excellent CMRR: 126 dB (Common-Voltage @ 11 V)
- High Open-Loop Gain: 1.8 Million
- Replaces 725, OP-07, SE5534 In Gains > 5
- Available in Die Form
